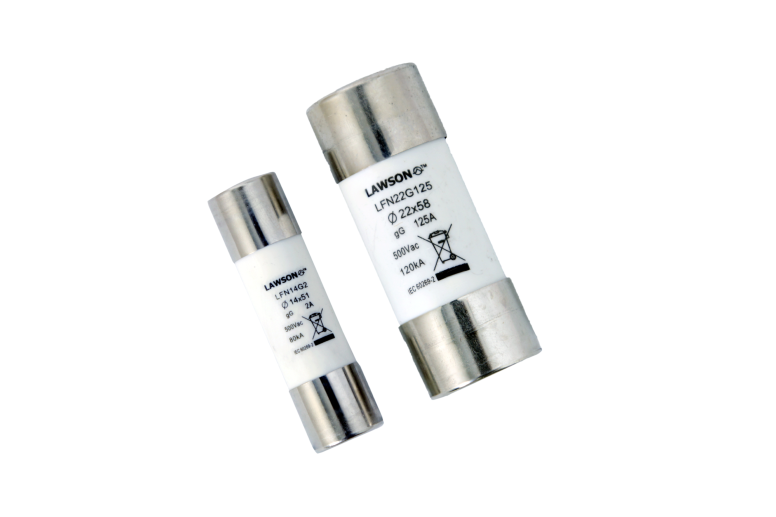

400/500/690 Volt Cylindrical Fuse-links to IEC 60269 2 IEC 60269 3 – Type LFN

Rated Voltages 400V a.c., 500V a.c., 690V a.c.

Breaking Capacities 20kA, 80kA, 120kA

Breaking Range and Utilisation Category gG/aM

Our Sales Team Our Sales Partners

Cylindrical Fuse-Links

Rated Voltages 400V a.c., 500V a.c., 690V a.c.

Breaking Capacities 20kA, 80kA, 120kA

Breaking Range and Utilisation Category gG/aM

Our Sales Team Our Sales Partners

Type LFN Product Information Sheet

Product Description

For motor circuit protection Fuse-Links, replace ‘G’ by ‘M’ in the list reference. A range of semiconductor protection Fuse-Links is also available.

For motor circuit protection Fuse-Links, replace ‘G’ by ‘M’ in the list reference. A range of semiconductor protection Fuse-Links is also available.

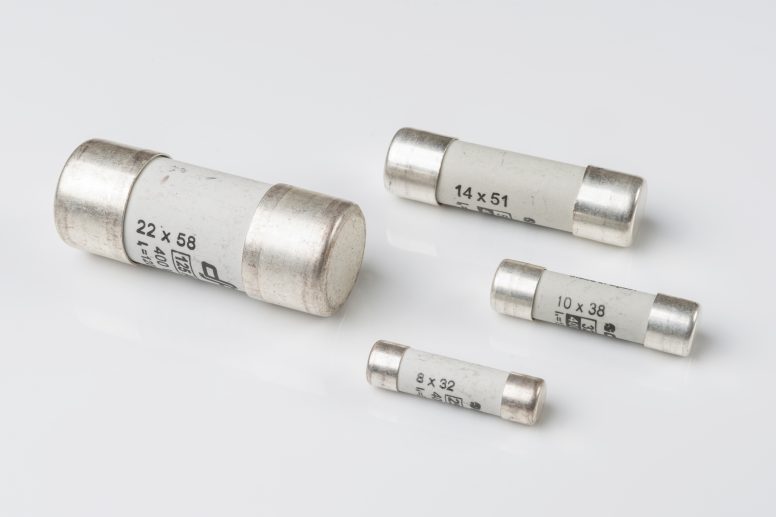

Voltage and current rating and principal dimensions
Voltage Rating (V a.c.)	Breaking Capacity (kA)	Current Rating (A)	List Ref.			Principal Dimensions
			Standard	Indicator	Striker	L mm	D mm

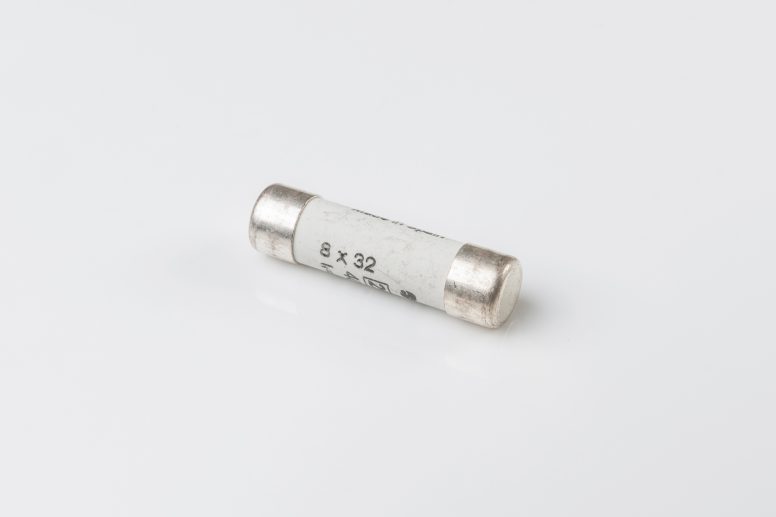

400	20	2	LFN8G	LFN8GI		31	8
400	20	4	LFN8G	LFN8GI		31	8
400	20	6	LFN8G	LFN8GI		31	8
400	20	8	LFN8G	LFN8GI		31	8
400	20	10	LFN8G	LFN8GI		31	8
400	20	12	LFN8G	LFN8GI		31	8
400	20	16	LFN8G	LFN8GI		31	8
400	20	20	LFN8G	LFN8GI		31	8
400	20	25	LFN8G	LFN8GI		31	8

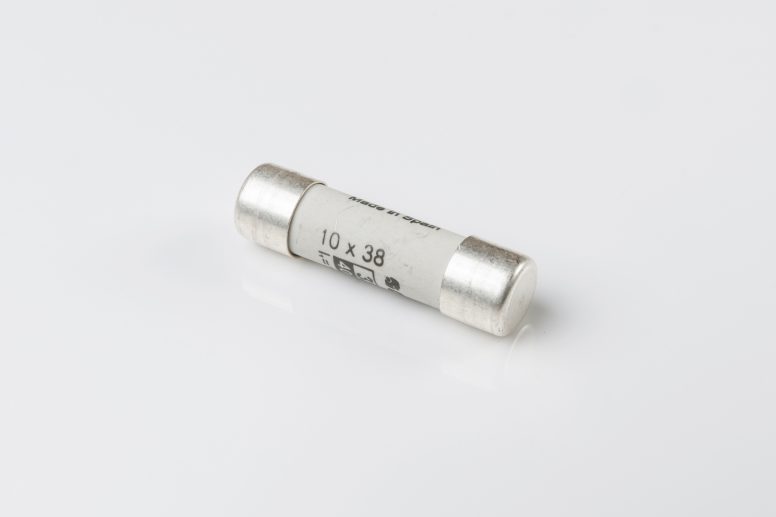

500	120	1	LFN10G	LFN10GI		38	10
500	120	2	LFN10G	LFN10GI		38	10
500	120	4	LFN10G	LFN10GI		38	10
500	120	6	LFN10G	LFN10GI		38	10
500	120	8	LFN10G	LFN10GI		38	10
500	120	10	LFN10G	LFN10GI		38	10
500	120	12	LFN10G	LFN10GI		38	10
500	120	16	LFN10G	LFN10GI		38	10
500	120	20	LFN10G	LFN10GI		38	10
500	120	25	LFN10G	LFN10GI		38	10
500	120	32	LFN10G	LFN10GI		38	10

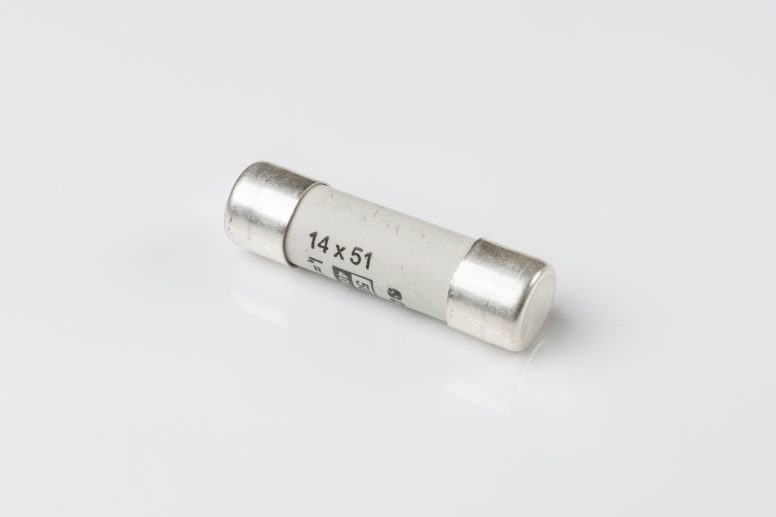

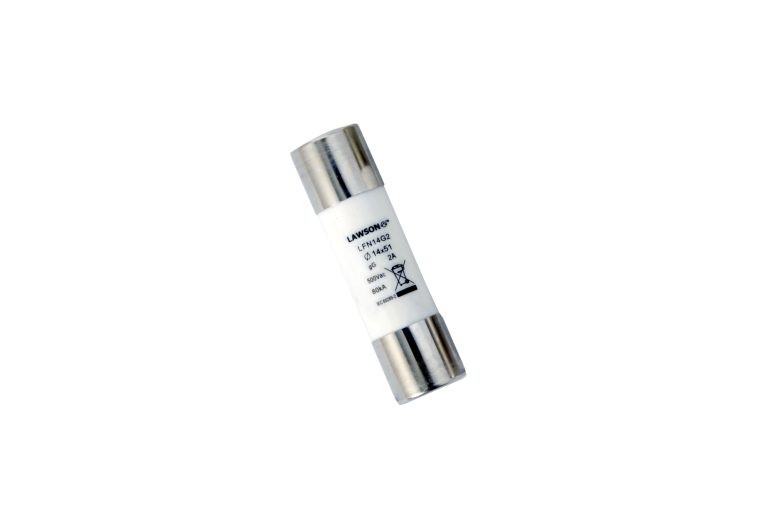

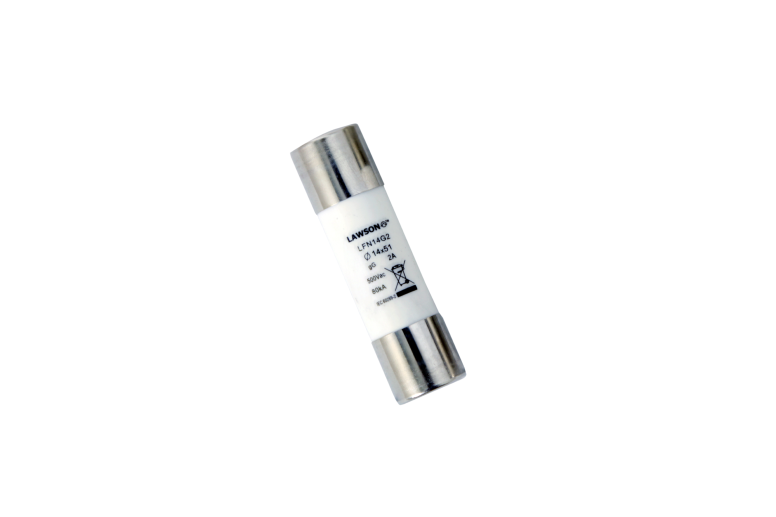

600	80	2	LFN14G	LFN14GI	LFN14GS	51	14
600	80	4	LFN14G	LFN14GI	LFN14GS	51	14
600	80	6	LFN14G	LFN14GI	LFN14GS	51	14
600	80	8	LFN14G	LFN14GI	LFN14GS	51	14
600	80	10	LFN14G	LFN14GI	LFN14GS	51	14
600	80	12	LFN14G	LFN14GI	LFN14GS	51	14
600	80	16	LFN14G	LFN14GI	LFN14GS	51	14
600	80	20	LFN14G	LFN14GI	LFN14GS	51	14
600	80	25	LFN14G	LFN14GI	LFN14GS	51	14
500	120	32	LFN14G	LFN14GI	LFN14GS	51	14
500	120	40	LFN14G	LFN14GI	LFN14GS	51	14
400	120	50	LFN14G	LFN14GI	LFN14GS	51	14

660	80	4	LFN22G	LFN22GI	LFN22GS	58	22
660	80	6	LFN22G	LFN22GI	LFN22GS	58	22
660	80	8	LFN22G	LFN22GI	LFN22GS	58	22
660	80	10	LFN22G	LFN22GI	LFN22GS	58	22
660	80	12	LFN22G	LFN22GI	LFN22GS	58	22
660	80	16	LFN22G	LFN22GI	LFN22GS	58	22
660	80	20	LFN22G	LFN22GI	LFN22GS	58	22
660	80	25	LFN22G	LFN22GI	LFN22GS	58	22
660	80	32	LFN22G	LFN22GI	LFN22GS	58	22
660	80	40	LFN22G	LFN22GI	LFN22GS	58	22
660	80	50	LFN22G	LFN22GI	LFN22GS	58	22
660	80	63	LFN22G	LFN22GI	LFN22GS	58	22
660	80	80	LFN22G	LFN22GI	LFN22GS	58	22
500	120	100	LFN22G	LFN22GI	LFN22GS	58	22

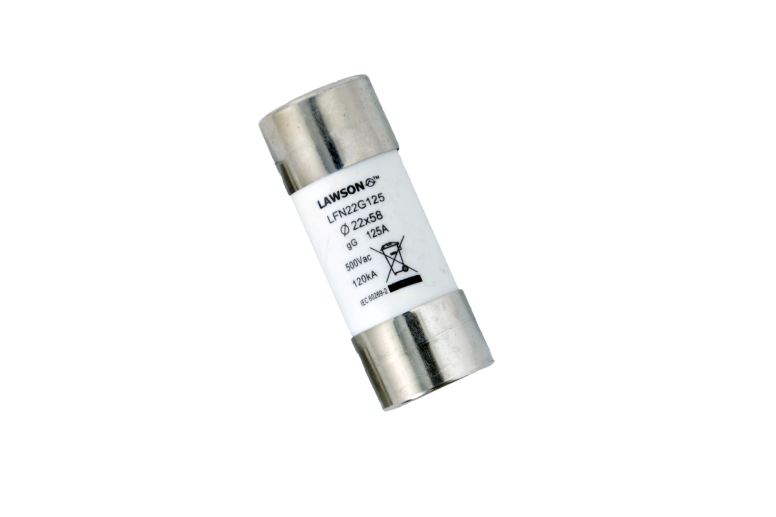

400	120	125	LFN22G	LFN22GI	LFN22GS	58	22
