Electricity Supply Fuse-Links with Wedge Connections

400/415 Volt Electricity Supply Distribution Fuse-Links to IEC 60269-2/BS 88-2 – Type J

Rated Voltage 415V a.c.

Breaking Capacity 80kA a.c.

Breaking Range and Utilisation Category gU

Our Sales Team Our Sales Partners

Product Description

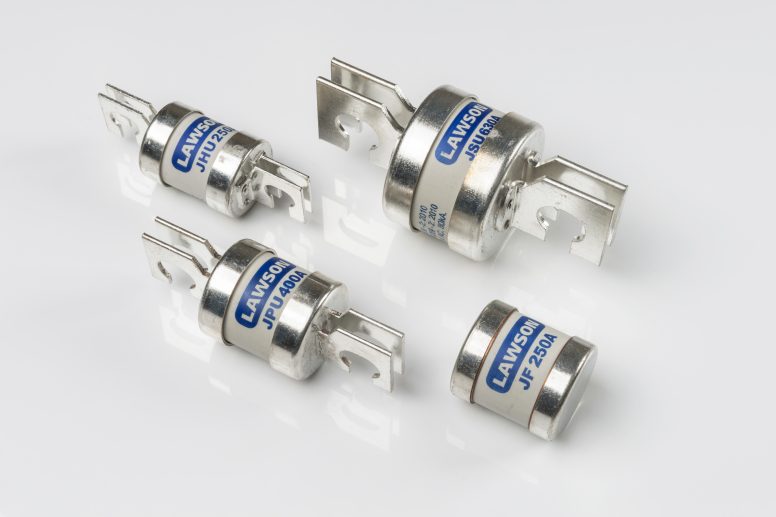

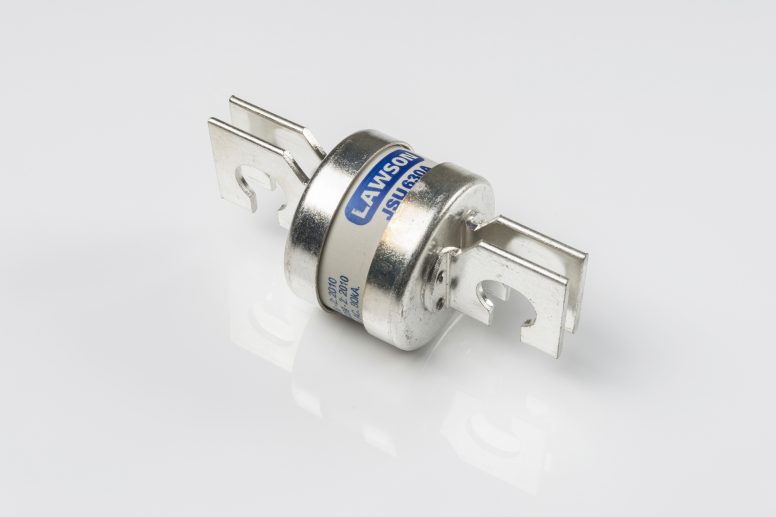

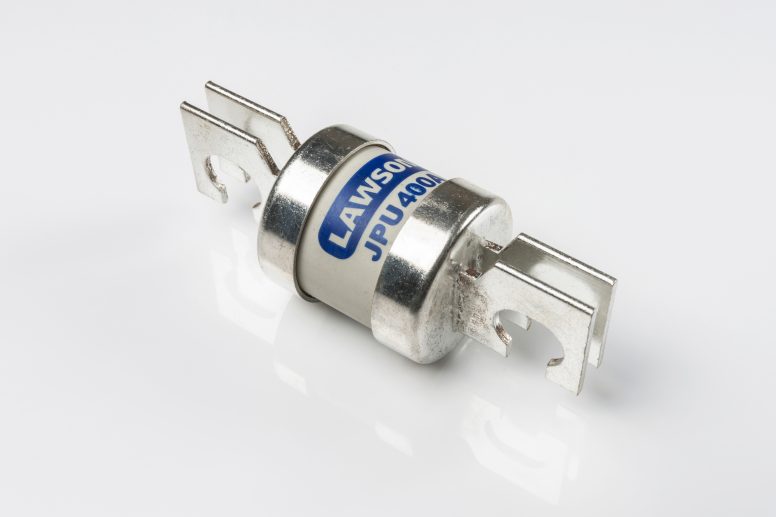

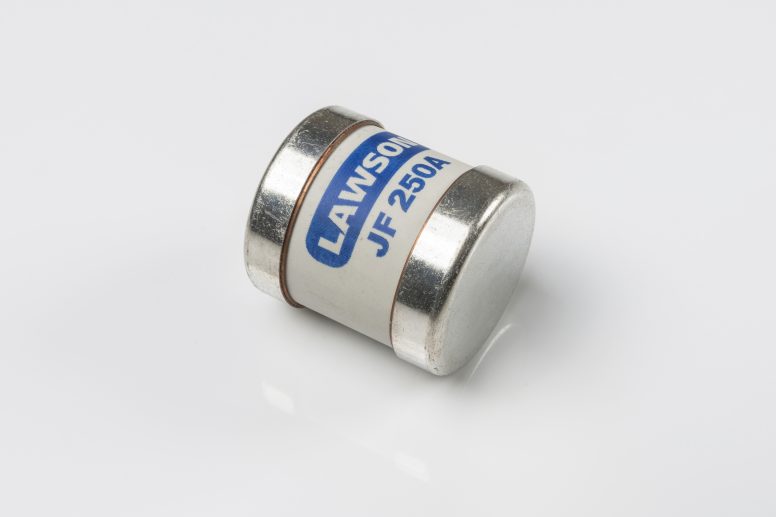

Lawson Type “J” fuse-links are for use in a.c. electricity supply networks. They are installed in distribution boards, feeder pillars, link boxes, pole mounted cut-outs and heavy duty service intakes. The range includes all the current ratings specified in BS88-2 and BS 7656 for fuse-links with the standard 82mm and 92mm fixing centres, together with additional non-standardised fuse-links with 76mm fixing centres and female contact fuse-links.

Notes:

  1. JPU450, 500, 560, 630A are restricted to intermittent loading when installed in 400A fixed contacts
  2. JSU800A is restricted to intermittent loading when installed in 630A fixed contacts
  3. IEC60269 and BS88-2 specify performance requirements up to 630A fixed contacts, therefore the performance of JSU800A fuse-links complies with the Breaking Range and Utilisation Category “gG”

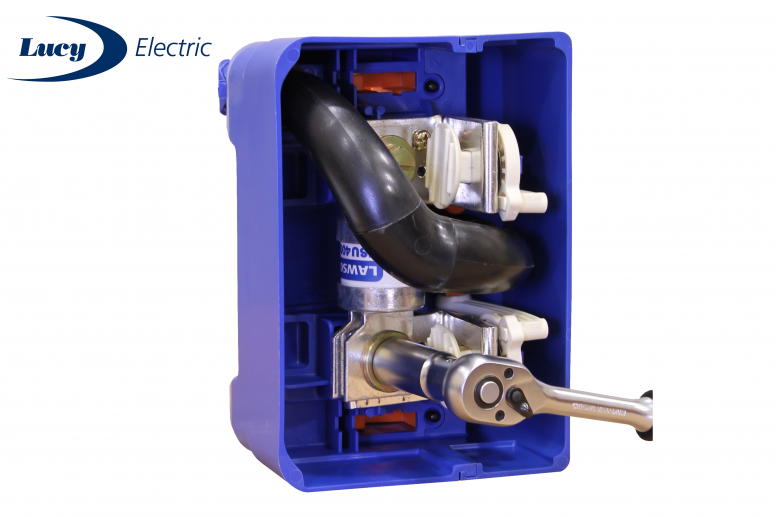

Final image courtesy of Lucy Electric: https://www.lucyelectric.com/product/fused-distribution-cabinet/



Product Description

Lawson Type “J” fuse-links are for use in a.c. electricity supply networks. They are installed in distribution boards, feeder pillars, link boxes, pole mounted cut-outs and heavy duty service intakes. The range includes all the current ratings specified in BS88-2 and BS 7656 for fuse-links with the standard 82mm and 92mm fixing centres, together with additional non-standardised fuse-links with 76mm fixing centres and female contact fuse-links.

Notes:

  1. JPU450, 500, 560, 630A are restricted to intermittent loading when installed in 400A fixed contacts
  2. JSU800A is restricted to intermittent loading when installed in 630A fixed contacts
  3. IEC60269 and BS88-2 specify performance requirements up to 630A fixed contacts, therefore the performance of JSU800A fuse-links complies with the Breaking Range and Utilisation Category “gG”

Final image courtesy of Lucy Electric: https://www.lucyelectric.com/product/fused-distribution-cabinet/

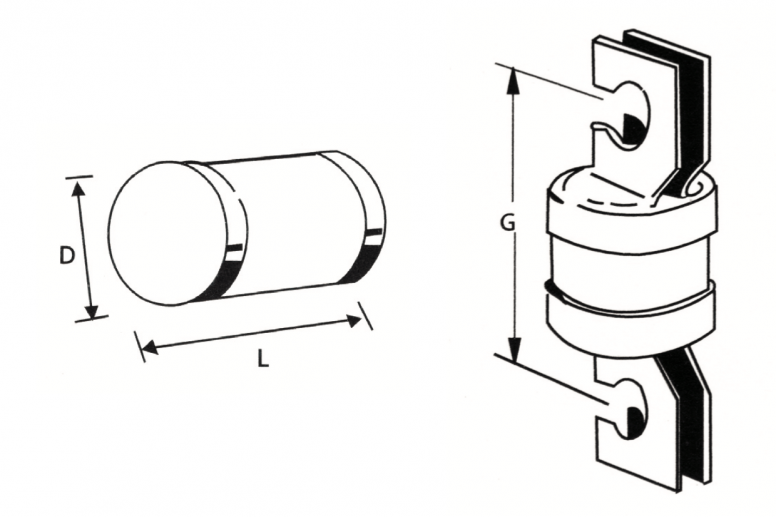

Current Ratings and Fixing Centres
