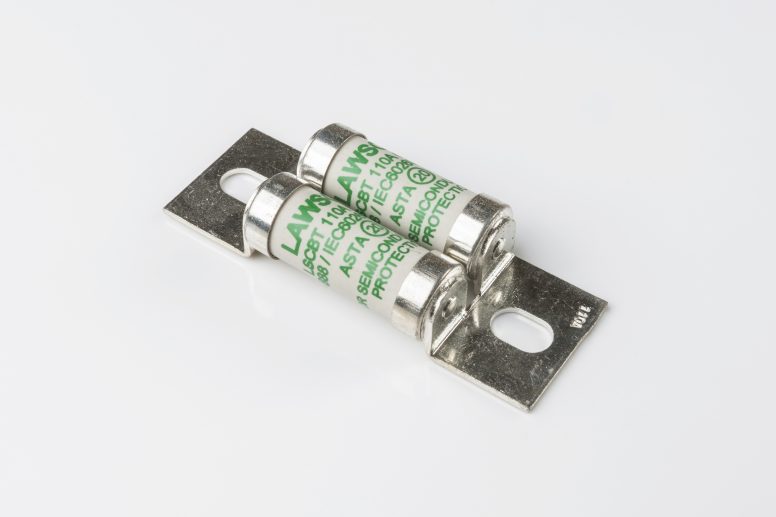

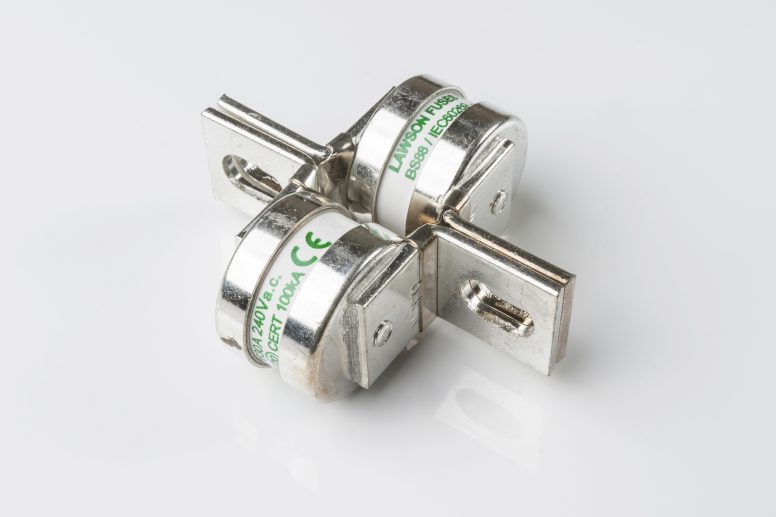

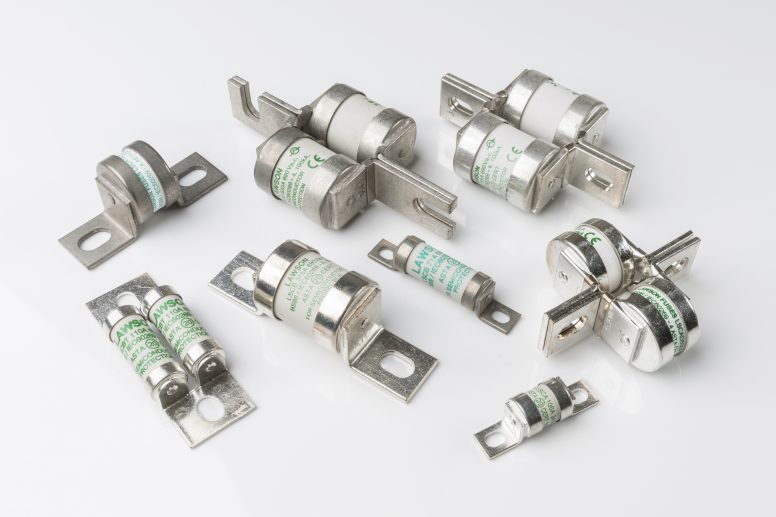

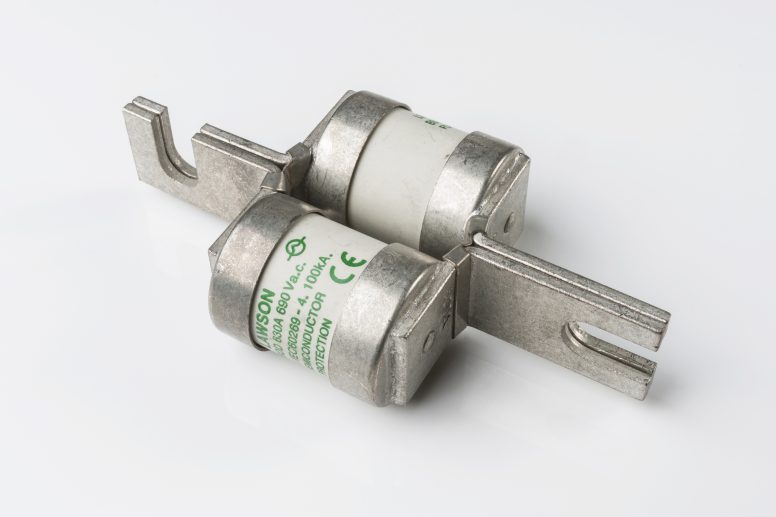

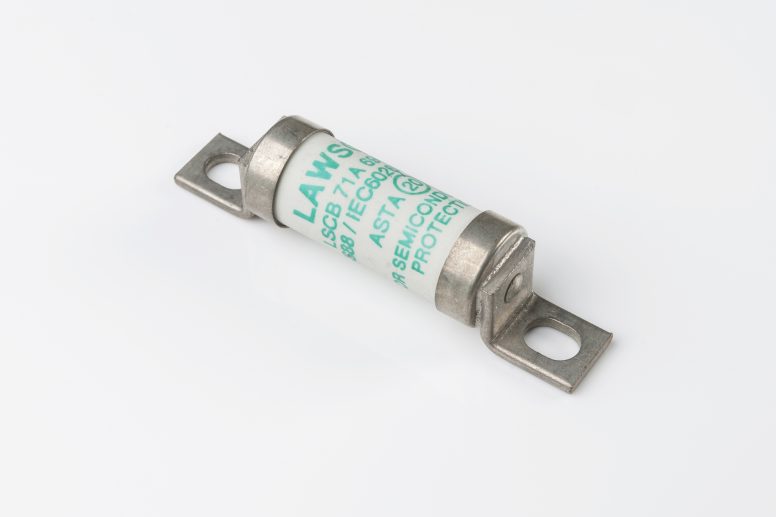

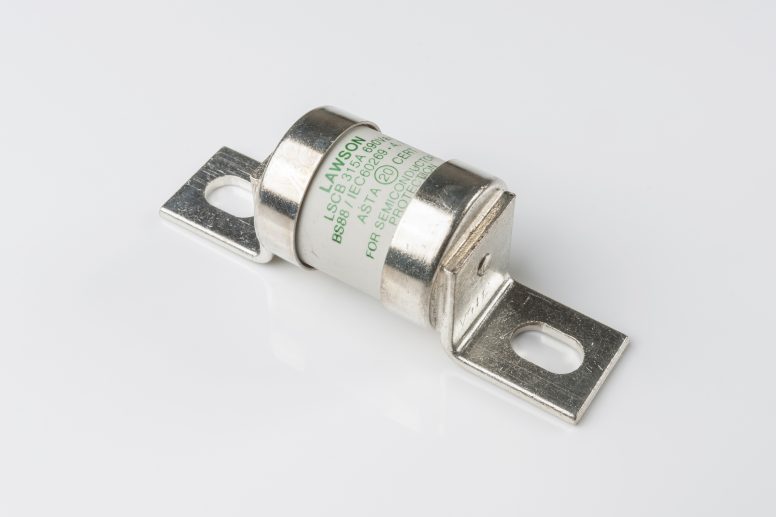

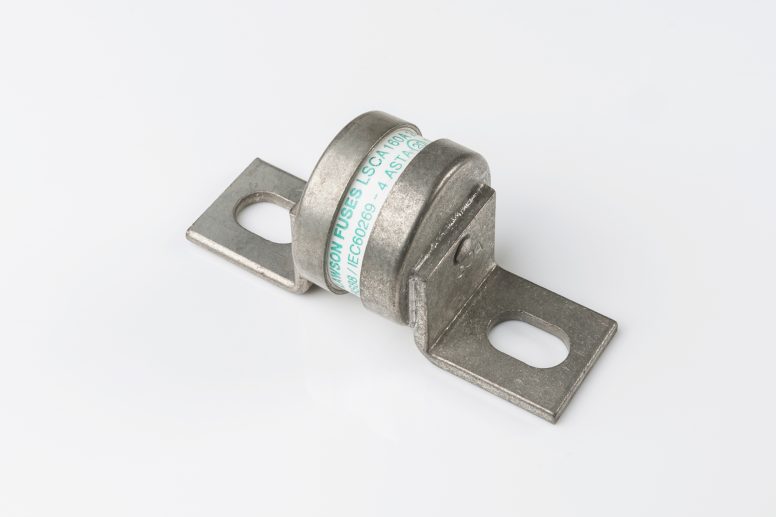

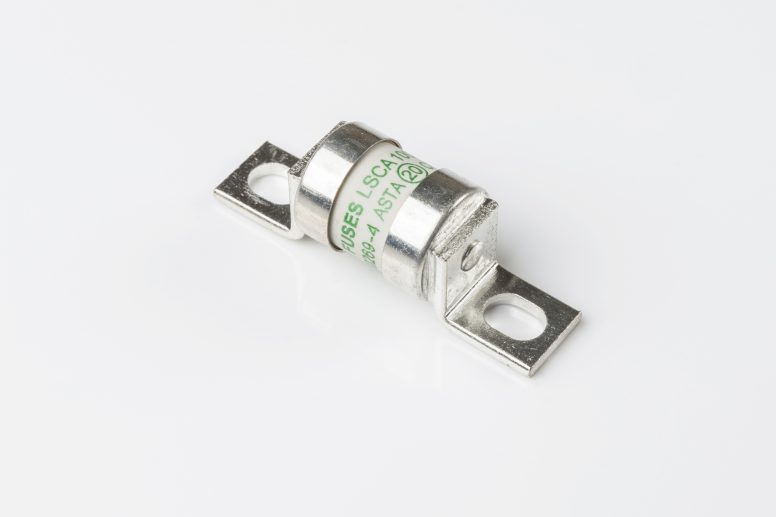

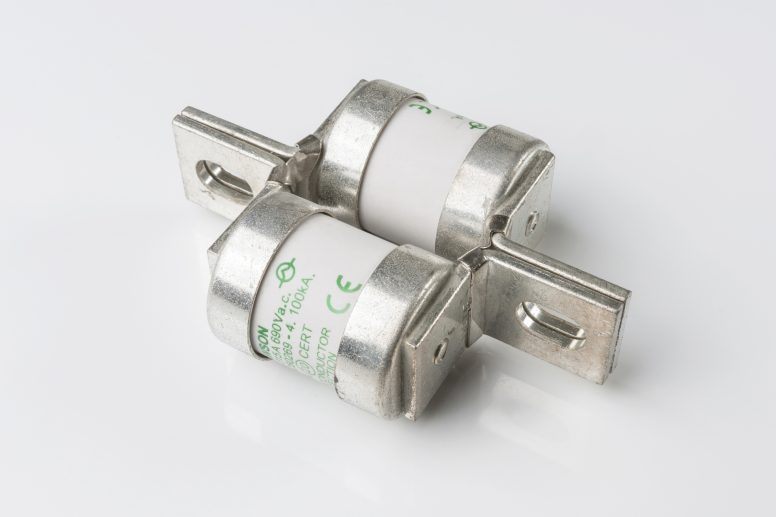

BS Semiconductor Protection Fuse-Links with Bolted Connections

240/690 Volt Semi-conductor Protection Fuse-Links to IEC 60269-4/BS 88-4 – Type LSC

Rated Voltages 240V a.c./120V d.c., 690V a.c./350V d.c.

Breaking Capacities 100kA a.c. 100kA d.c.

Breaking Range and Utilisation Category aR

Our Sales Team Our Sales Partners

Product Description

A comprehensive range of Fuse-Links for the protection of semiconductor devices. The 240 and 690 volt series comply with the performance and dimensional requirements of BS 88: Part 4 and IEC 60269-4.

In addition to the current ratings specified in IEC 60269-4 and BS 88-4, other non-standard current ratings are available.

Indicators

Trip-indicator fuse-links are available for use in parallel with the main fuse-link. Indicator fuse-links can either be attached to the associated fuse-link or mounted separately in panel mounted fuse clips.
A push-on adaptor and micro switch attachment is available for use with the trip indicator to give the facility of remote indication.

Product Description

A comprehensive range of Fuse-Links for the protection of semiconductor devices. The 240 and 690 volt series comply with the performance and dimensional requirements of BS 88: Part 4 and IEC 60269-4.

In addition to the current ratings specified in IEC 60269-4 and BS 88-4, other non-standard current ratings are available.

Indicators

Trip-indicator fuse-links are available for use in parallel with the main fuse-link. Indicator fuse-links can either be attached to the associated fuse-link or mounted separately in panel mounted fuse clips.
A push-on adaptor and micro switch attachment is available for use with the trip indicator to give the facility of remote indication.

Principal Ratings 240 Volt

Principal Ratings 690 Volt

Dimensions in Millimetres
